OpenAgents UI Quickstart

This guide walks you through running OpenAgents and launching your first agent job from the web UI.

1) Start the stack

bash scripts/build-images.sh
docker compose up -d --build

On Windows, use pwsh scripts/first-run.ps1 instead to populate .env, build the provider images, and start the stack.

Provider credentials

Set the auth environment variable for each provider you plan to run:

  • ANTHROPIC_API_KEY - Claude Code
  • OPENAI_API_KEY - Codex (and optionally OpenCode)
  • GEMINI_API_KEY - Gemini (and optionally OpenCode)
  • GH_TOKEN or GITHUB_TOKEN - Copilot (and optionally OpenCode)

Open:

  • Web UI: http://localhost:3001
  • API health: http://localhost:8080/healthz

2) Open Jobs and create a run

  1. Go to Jobs.
  2. Click New Job.
  3. Fill:
    • Title: a short run name
    • Prompt / Request: what the agent should do
    • Workflow: usually planning
    • Provider: one of claude-code, opencode, codex, gemini, or copilot
    • Workspace path: local path for artifacts
  4. Click Create Job.

Jobs list

3) Monitor execution

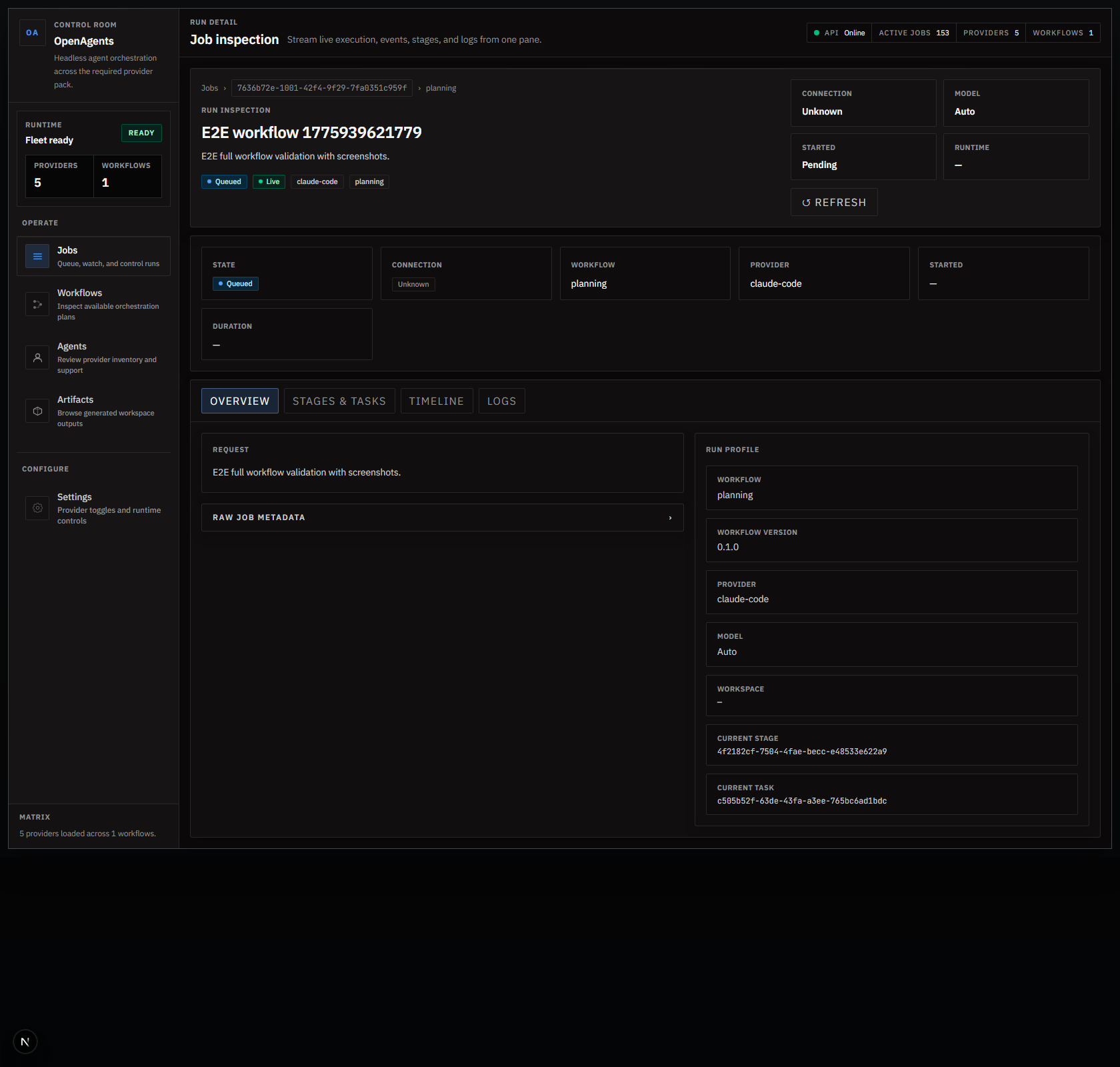

Open job detail and use tabs:

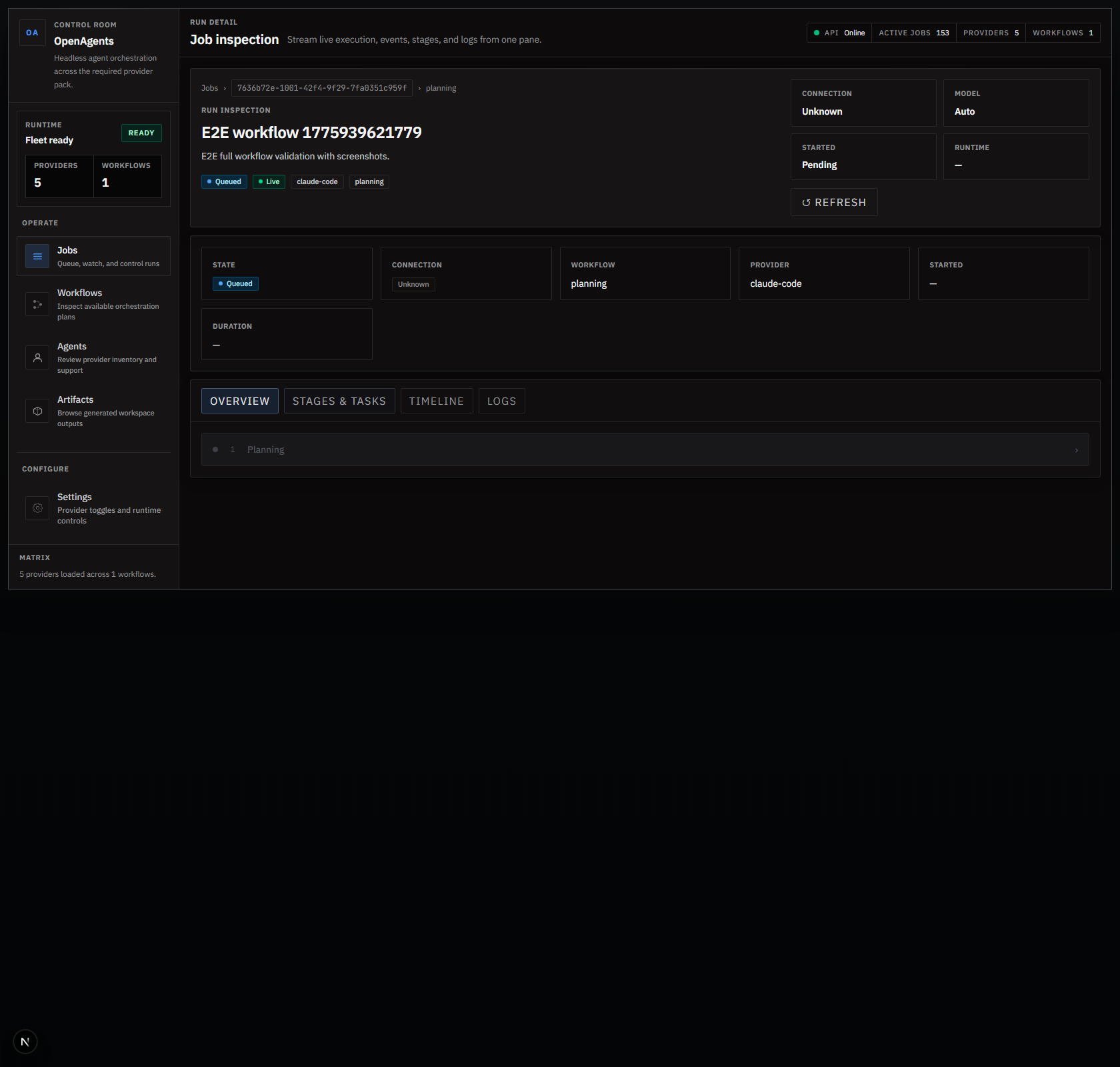

  • Stages & Tasks for execution breakdown

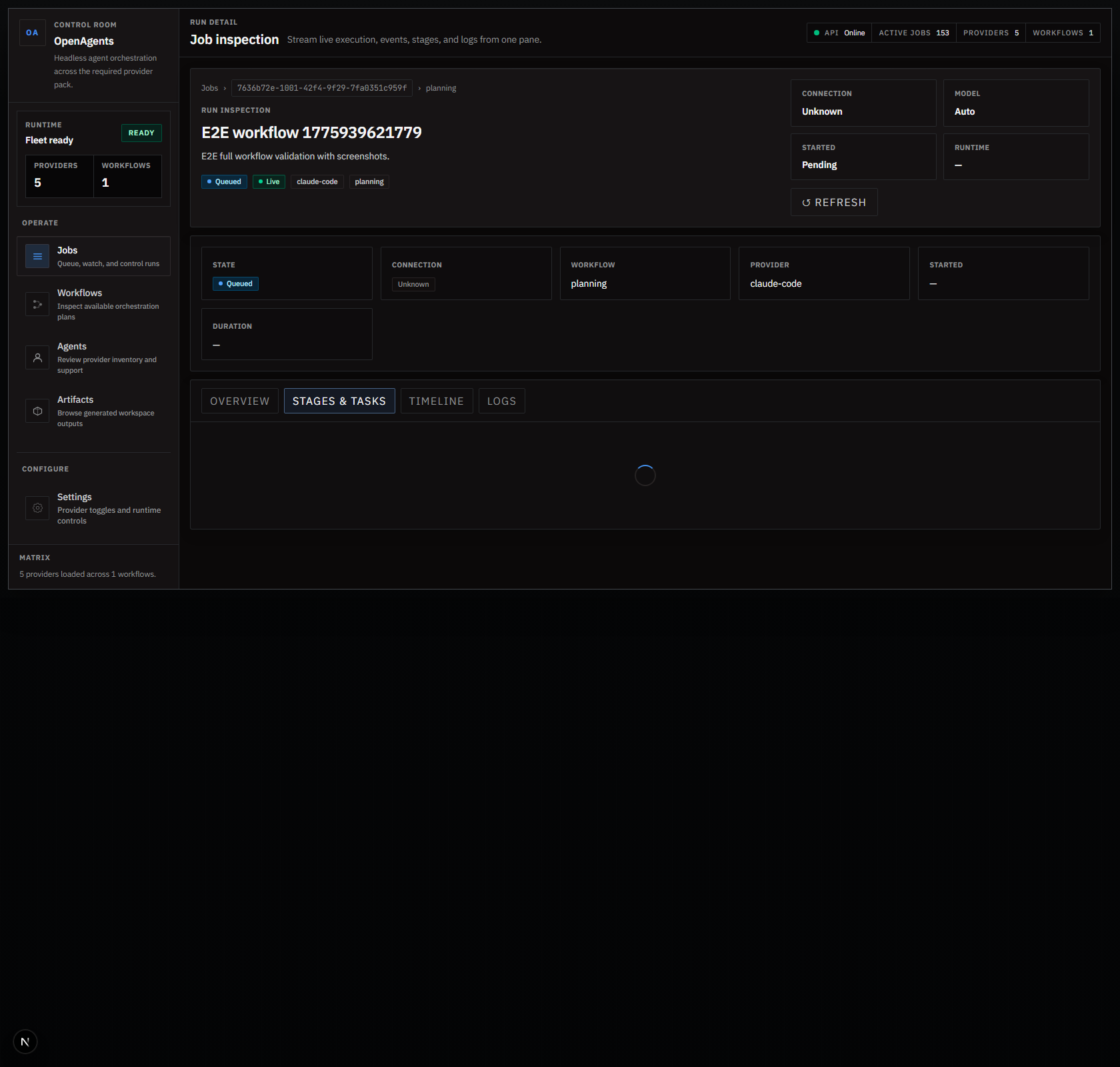

  • Timeline for events

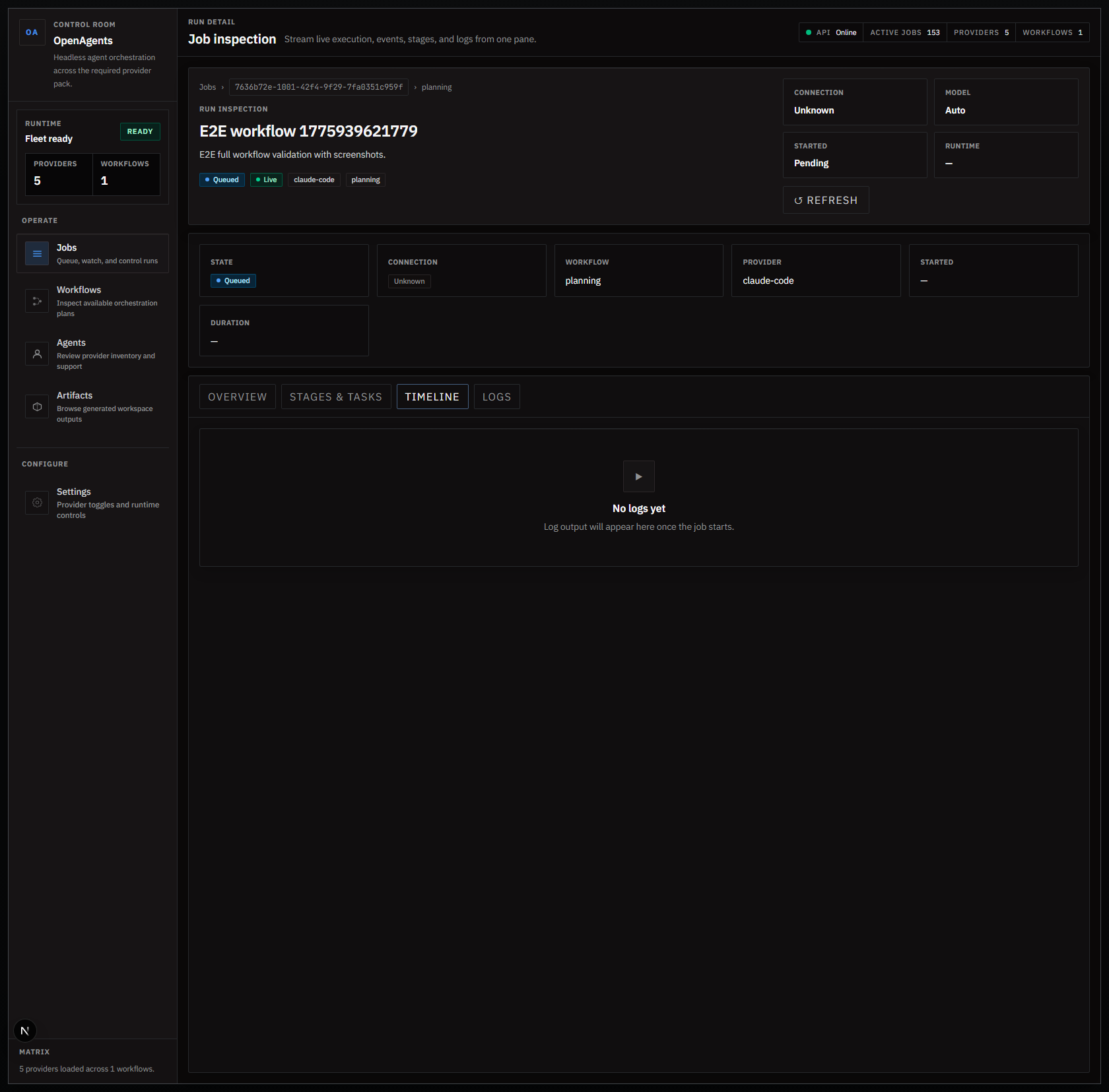

  • Logs for process output

Job detail Stages Timeline Logs

4) Configure workflows and providers

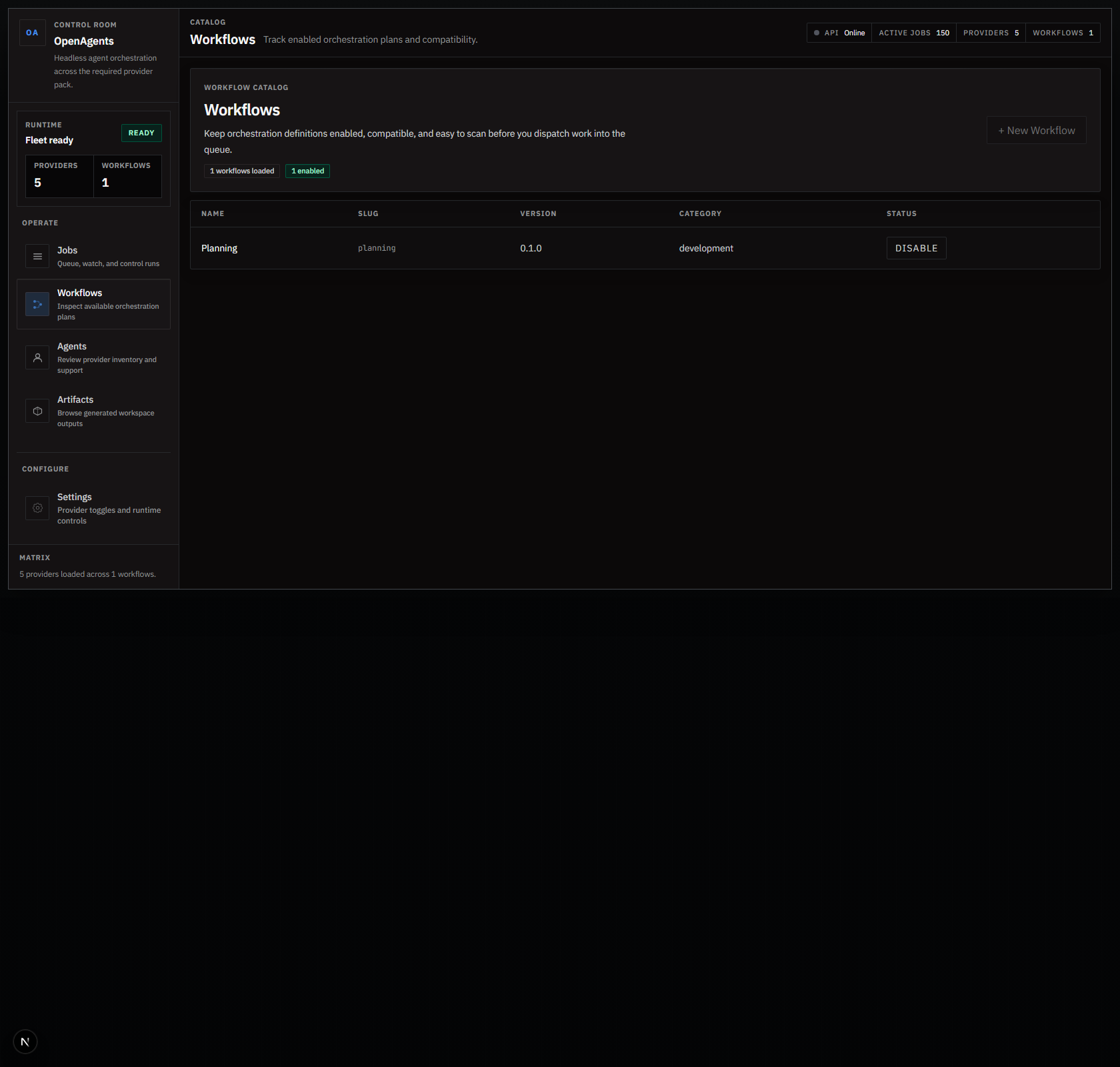

  • Workflows page lets you create workflow definitions, then enable/disable them.

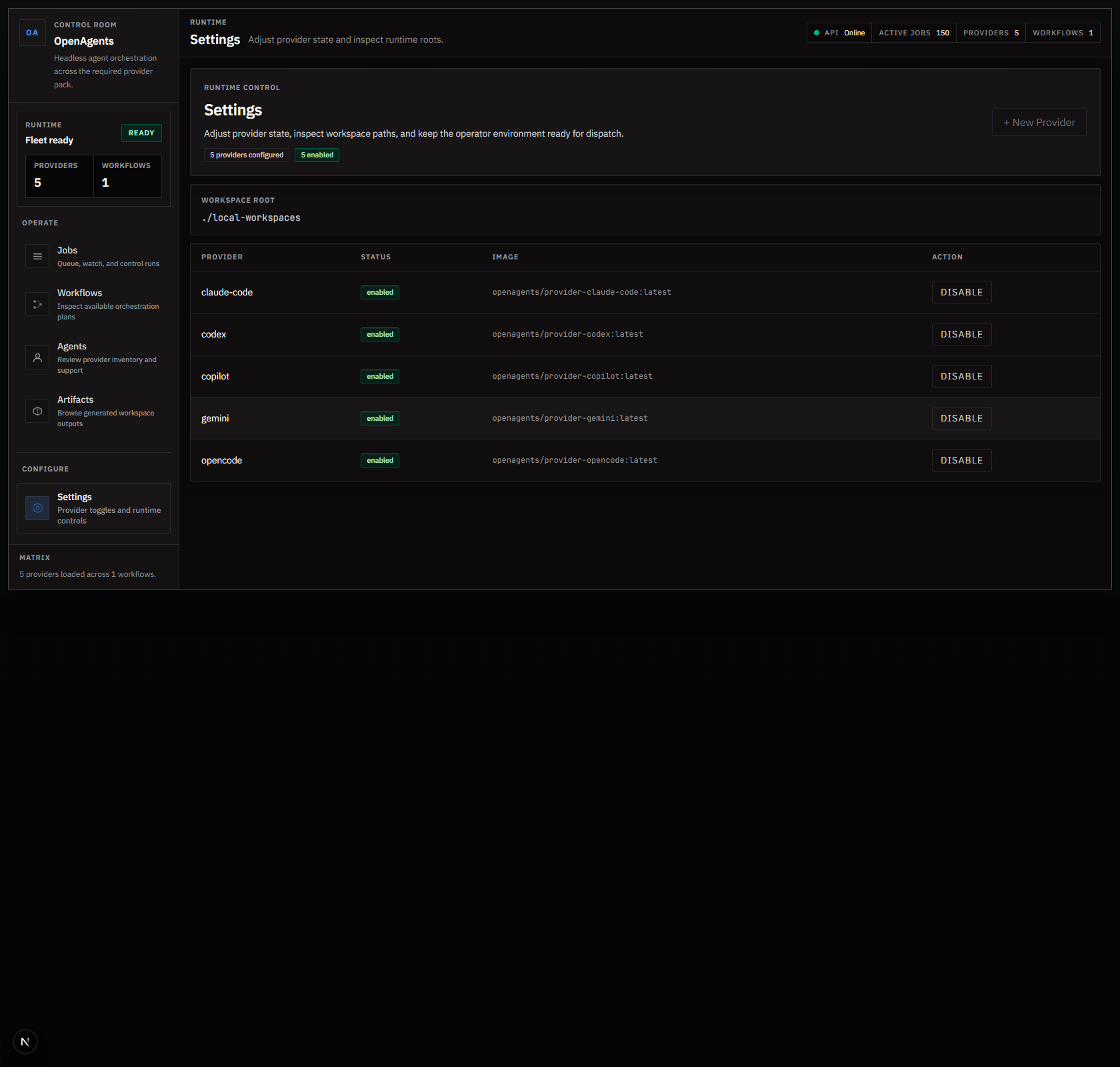

  • Settings page lets you create provider definitions, toggle them, and verify runtime roots.

Workflows Settings

5) Inspect runtime and artifacts

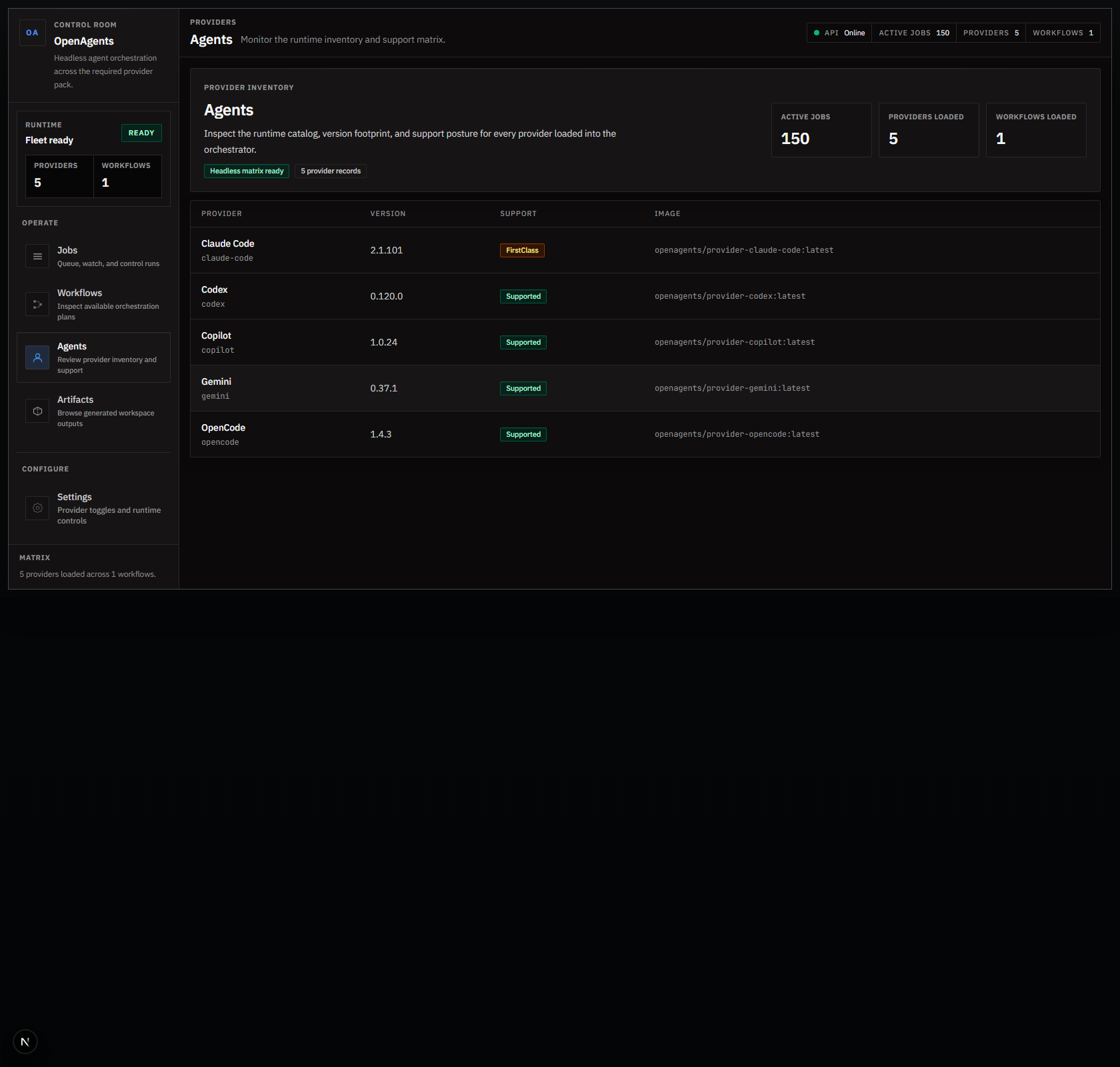

  • Agents shows runtime/provider summary.

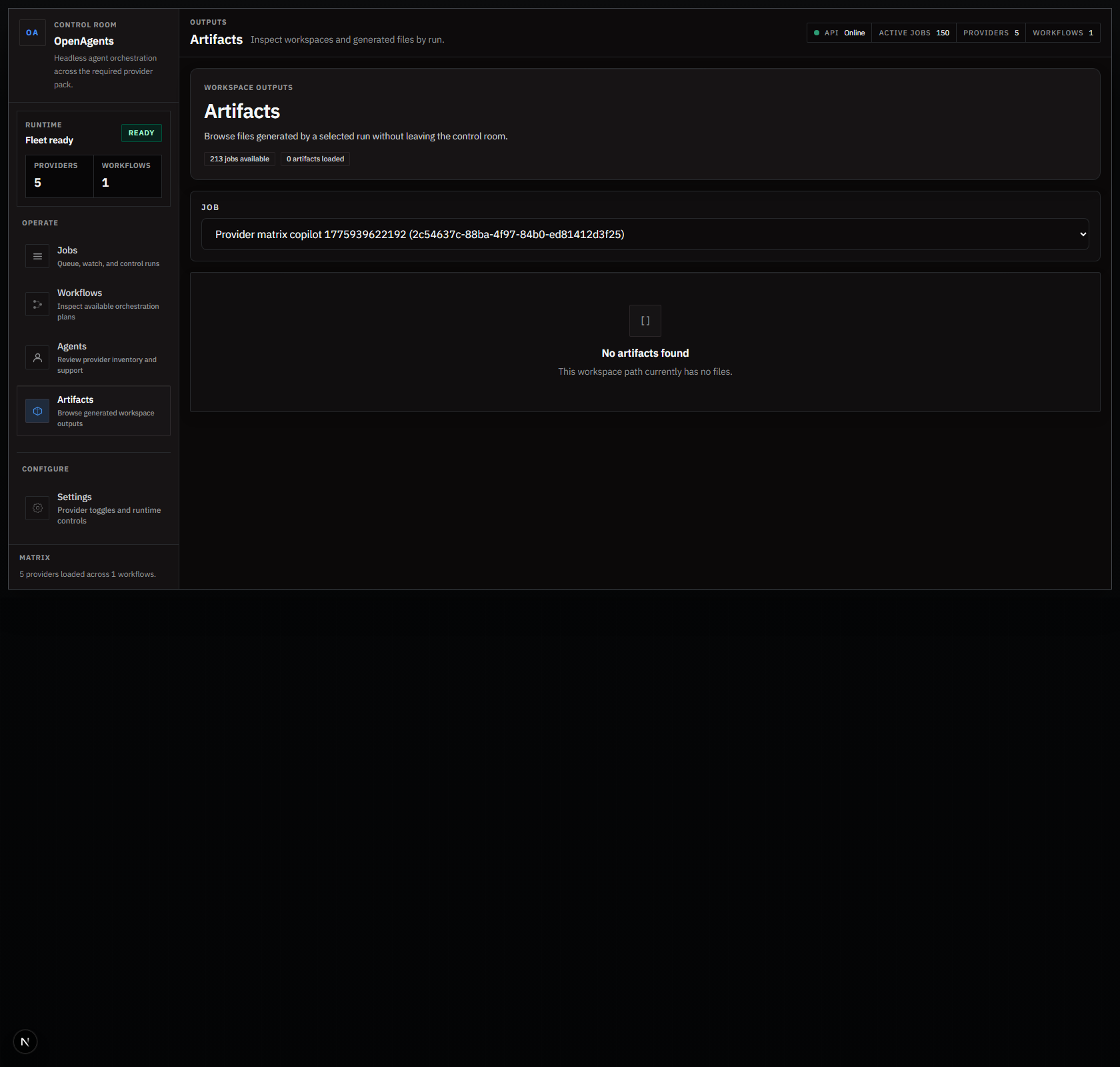

  • Artifacts browses workspace outputs for a selected job.

Agents Artifacts

6) Validate end-to-end locally

pnpm format:check
dotnet test apps/orchestrator-api/OpenAgents.OrchestratorApi.csproj -v minimal
pnpm test:coverage:api
pnpm --filter orchestrator-web type-check
pnpm --filter orchestrator-web build
pnpm --filter orchestrator-web e2e
pnpm validate:compose
pnpm docs:build
